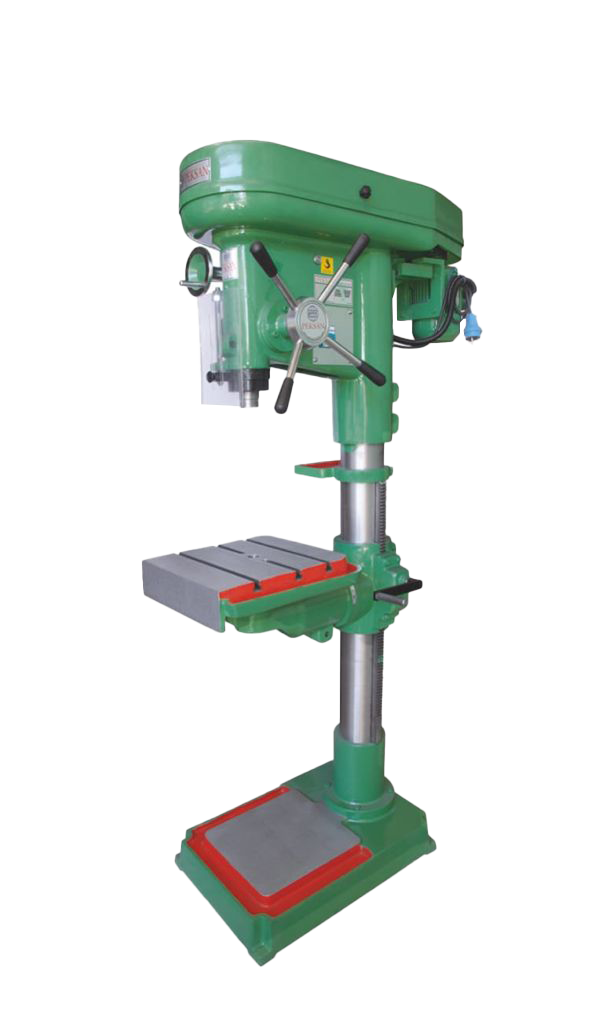

1- Technical specifications
2- Drilling capacity 32 mm
3- Morse code hive, 4 Morse code columns, diameter 130 mm.
4- Table – distance between Morse code: 1190 mm
5- Engine power 1 Hp Engine speed 1500 rpm
6- Its height is 1920 mm and its weight is 435 kg.
7- Machine installation, operation and commissioning process
8- The workbench must first be secured to the floor in its intended location using concrete or screws.
9- The power cable input end must be connected to a circuit breaker to make the machine ready for operation.
10- The spindle should have 4 Morse code and cone attached to it, and a chuck should be attached to the end.
11- The drilling machine has a 4-speed belt-driven pulley system.
12- The lantern shaft should be lubricated at regular intervals.
